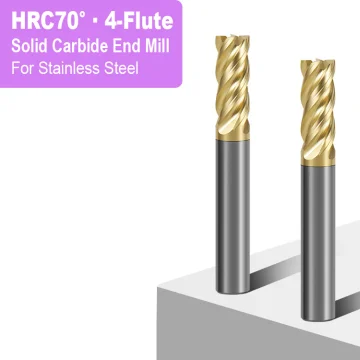

Zhuzhou Jinzuan HRC70 4-flute dynamic roughing end mill is specially designed for high-speed roughing of stainless steel. Made from ultra-fine grain solid carbide, it delivers low vibration, smooth chip evacuation, and long tool life, ideal for modern CNC dynamic milling processes.
| Model | DC(cm) | APMX(cm) | DON(cm) | LF(cm) |
| Ф1*3*4*50L | 1 | 3 | 4 | 50 |
| Ф1.5*5*4*50L | 1.5 | 5 | 4 | 50 |
| Ф2*6*4*50L | 2 | 6 | 4 | 50 |
| Ф2.5*8*4*50L | 2.5 | 8 | 4 | 50 |
| Ф3*9*3*50L | 3 | 9 | 3 | 50 |
| Ф3*9*4*50L | 3 | 9 | 4 | 50 |
| Ф3.5*11*4*50L | 3.5 | 11 | 4 | 50 |
| Ф4*12*4*50L | 4 | 12 | 4 | 50 |
| Ф5*13*5*50L | 5 | 13 | 5 | 50 |
| Ф5*13*6*50L | 5 | 13 | 6 | 50 |
| Ф6*15*6*50L | 6 | 15 | 6 | 50 |
| Ф6*18*6*50L | 6 | 18 | 6 | 50 |
| Ф7*20*8*60L | 7 | 20 | 8 | 60 |
| Ф8*20*8*60L | 8 | 20 | 8 | 60 |
| Ф8*24*8*60L | 8 | 24 | 8 | 60 |
| Ф3*12*3*75L | 3 | 12 | 3 | 75 |
| Ф4*16*4*75L | 4 | 16 | 4 | 75 |
| Ф5*18*5*75L | 5 | 18 | 5 | 75 |
| Ф6*24*6*75L | 6 | 24 | 6 | 75 |
| Ф8*25*8*75L | 8 | 25 | 8 | 75 |
| Ф9*25*10*75L | 9 | 25 | 10 | 75 |
| Ф10*25*10*75L | 10 | 25 | 10 | 75 |
| Ф10*30*10*75L | 10 | 30 | 10 | 75 |
| Ф11*30*12*75L | 11 | 30 | 12 | 75 |
| Ф12*30*12*75L | 12 | 30 | 12 | 75 |
| Ф12*36*12*75L | 12 | 36 | 12 | 75 |
| Ф3*12*3*100L | 3 | 12 | 3 | 100 |
| Ф4*20*4*100L | 4 | 20 | 4 | 100 |
| Ф5*30*5*100L | 5 | 30 | 5 | 100 |
| Ф6*30*6*100L | 6 | 30 | 6 | 100 |
| Ф8*35*8*100L | 8 | 35 | 8 | 100 |
| Ф10*40*10*100L | 10 | 40 | 10 | 100 |
| Ф10*50*10*100L | 10 | 50 | 10 | 100 |
| Ф12*45*12*100L | 12 | 45 | 12 | 100 |
| Ф12*50*12*100L | 12 | 50 | 12 | 100 |
| Ф14*45*14*100L | 14 | 45 | 14 | 100 |
| Ф16*45*16*100L | 16 | 45 | 16 | 100 |
| Ф18*45*18*100L | 18 | 45 | 18 | 100 |
| Ф20*45*20*100L | 20 | 45 | 20 | 100 |
| Ф6*45*6*150L | 6 | 45 | 6 | 150 |
| Ф8*50*8*150L | 8 | 50 | 8 | 150 |
| Ф10*55*10*150L | 10 | 55 | 10 | 150 |
| Ф12*55*12*150L | 12 | 55 | 12 | 150 |
| Ф14*70*14*150L | 14 | 70 | 14 | 150 |
| Ф16*70*16*150L | 16 | 70 | 16 | 150 |
| Ф18*70*18*150L | 18 | 70 | 18 | 150 |
| Ф20*70*20*150L | 20 | 70 | 20 | 150 |
* Important Performance Reminder:
The “HRC70” workpiece hardness rating is based on standard machining parameters and recommended conditions.
In actual use, performance and tool life are affected by many factors, including:
- Workpiece material and hardness
- Cutting speed, feed rate, and depth of cut
- Coolant/lubrication method
- Machine tool rigidity and clamping stability
For optimal results, please consult our technical team for parameters tailored to your application before bulk production.
| Material : | Cemented Carbide; |
| Processing : | Finishing; Semi-finishing; |
| Workpiece : | Steel; Stainless steel; Cast Iron; |
| Coating : | ALNOVZ3 Coated; |
| Brand Name : | Zhuzhou Jinzuan |
| Place of Origin : | Zhuzhou City - the largest cemented carbide industrial production base in China |
| Category : | Solid Carbide End Mills |
